One Key Lifting Fire Mobile Lighting Device Red And Blue Warning Lights

Minimum Order Quantity : 1set Price : USD1200
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: YZ300-5F

Detail Information

Size: 830*580*1700 Mm Weight: 52.8KG
Fuel Tank Capacity: 2.1L Engine Oil Capacity: 0.25L
Maximum Lifting Height: 5.6m Minimum Retracted Height: 1.4 M
Highlight:

Red Fire Mobile Lighting Device

,

Blue Fire Mobile Lighting Device

Product Description

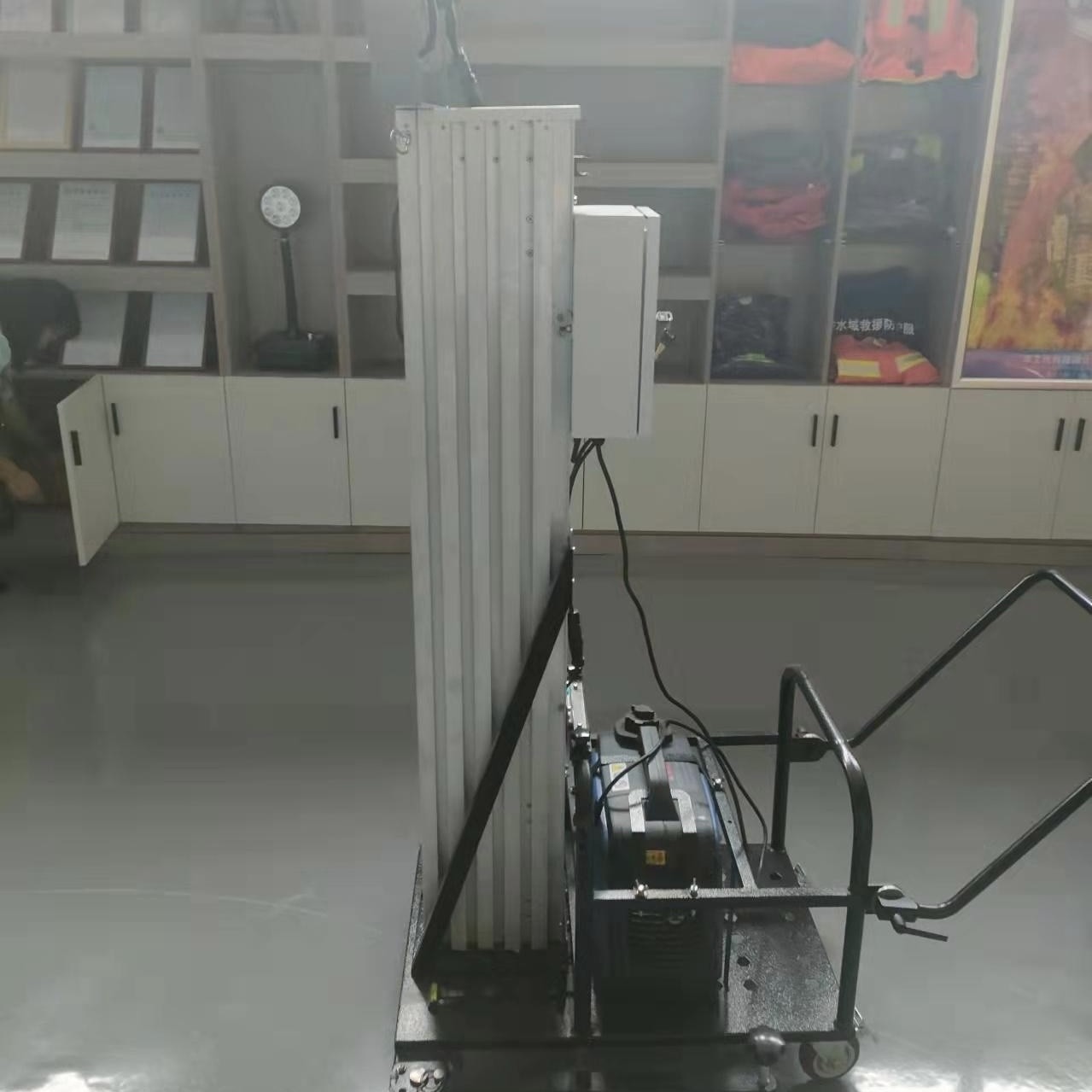

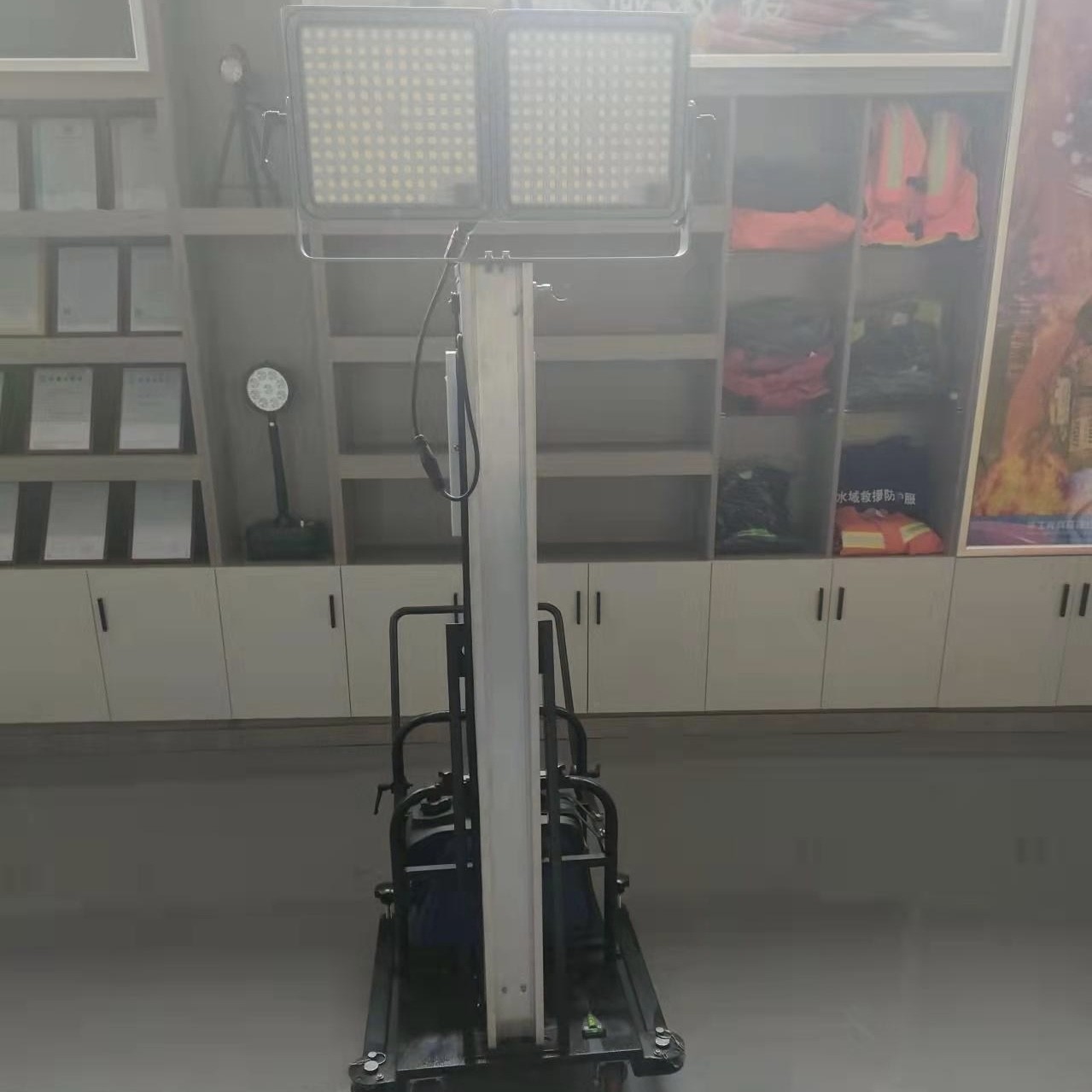

YZ300-5F Fire Mobile Lighting Device



I. Scope of Application

Safety fields such as firefighting and emergency response



II. Product Features

  • This product can simultaneously meet the loading and unloading needs of pickup trucks and small to medium-sized trucks. It can be disassembled into three major components for transportation without the need for tools, avoiding the use of forklifts or cranes for loading and unloading. It is fast, efficient, safe, and economical.
  • The illuminance at a distance of 10 meters is greater than 700 (lx). The protection level of the lamp head is IP66, the protection level of the box body is IPX5, and the wind resistance grade is ≥ Grade 7; The lifting mode is one-key lifting, and it can stop at any height; The minimum retracted height is 1.4m; The maximum lifting height is 5m.
  • There should be red and blue warning lights at the mast; The type of generator set: gasoline variable frequency generator, and the power matches that of the light source; Working noise: Around the engine, it can be directly connected to 220V electricity for long-term lighting.
  • Assembly requirements: The base component and the mast component can be quickly assembled and disassembled, and can be operated by a single person.
  • The control panel is simple and easy to operate, which can control the lifting, stopping of the lamp at any height within 5 meters, meeting the convenience of on-site command operation.
  • It can remotely control the lifting and lighting of the lamp within a distance of 30 meters.



III. Main Technical Indicators





(1) Lamp Panel Component
Light source type: LED
Rated power: 2150W
Vertical rotation: 0-135°
Luminous flux: 341861lm
Protection level: Lamp head IP65, lamp box IP54
Illuminance at 10 meters: 112lx
Light source lifespan: 100,000h
(2) Mast Component
Lifting power: Generator/Electric push rod
Rising time: ≤2Min (3m)/≤3Min (5m)
Descending time: ≤2Min (3m)/≤3Min (5m)
(3) Generator Component
Generator type: Variable frequency generator
Power, voltage/frequency: 500W, 220V/50Hz
Fuel type: Gasoline
Fuel tank capacity: 2.1L
Engine oil capacity: 0.25L
Continuous usage time when fully refueled: 6.5h
Starting method: Hand-pull
Noise level (at a distance of 7 meters): 67.7dB(A)
Cooling method: Air cooling
(4) Control Module
Control method: Panel switch
Leakage protection function: Available
Input: 220V
(5) Others
Quantity of spirit levels: 1
Number of directional wheels: 2
Total weight of the whole machine: 52.8KG
Overall dimensions: 830
580*1700 (mm)

Wind resistance grade: Grade 6
Maximum lifting height: 5.6m
Minimum retracted height: 1.4m
It reaches the maximum lifting height in 2.37 minutes.
Lifting of the lamp set: The maximum lifting height of the lamp set is 5502mm.
Minimum retracted height: 1320mm
The full rising time is 1.53 minutes, and the full descending time is 1.37 minutes.



 .png



Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals,. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.
