Fast Lifting Speed Lifting Air Cushion To Be Stacked For Use Without Pressure Drop

Minimum Order Quantity : 1set Price : USD120
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: QQD1-35/0.8-KF1

Detail Information

Size: 150*150*25mm-960*960*25mm Weight: 0.66kg-28.4kg
Working Pressure: 0.8MPa Supporting Height: 75-550mm
Structural Height: ≤2.6cm Maximum Lifting Force: ≥10kN-666kN
Highlight:

Fast lifting speed Lifting air Cushion

,

Stacked Lifting Air Cushion

Product Description

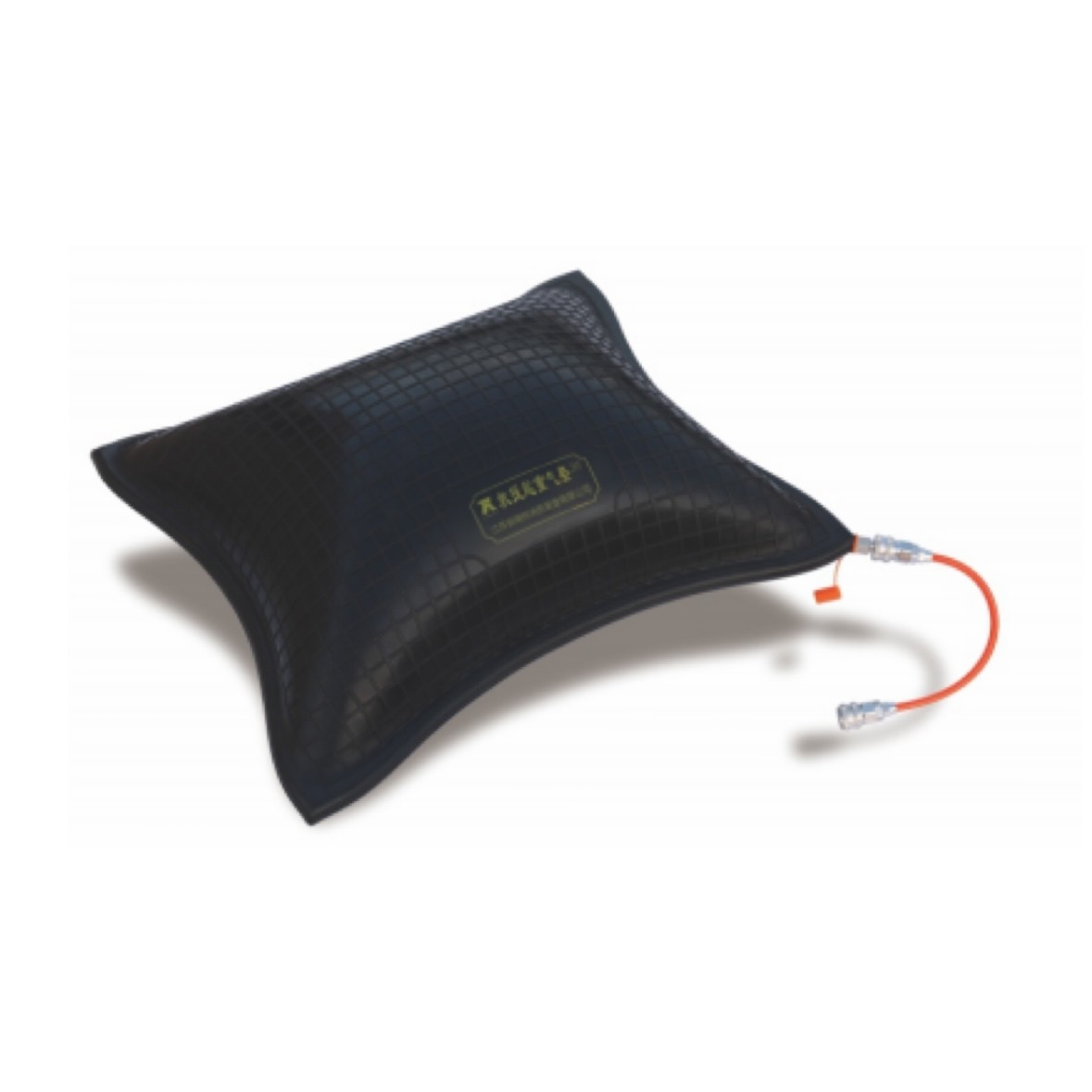

QQD1-35/0.8-KF1 Lifting air Cushion



I. Product Overview

The rescue lifting air cushion is suitable for situations where ordinary lifting equipment is difficult to operate, especially for rescuing people trapped under heavy objects; for disaster relief and rescue work after earthquakes, for mining marble and large stones; for disassembling wheels, drums, and gears when repairing heavy machinery; for train derailment restoration; for opening elevator doors; for supporting or moving pipelines during pipeline maintenance and welding; for replacing tires of large cars, trucks, and tractors; for assisting in unloading tilted trucks; for moving large machinery and equipment; for leveling large experimental platforms; for railway maintenance; for rescuing people trapped in equipment in civil or industrial accidents, etc.



II. Product Features

  • Insertion height of 2.5cm

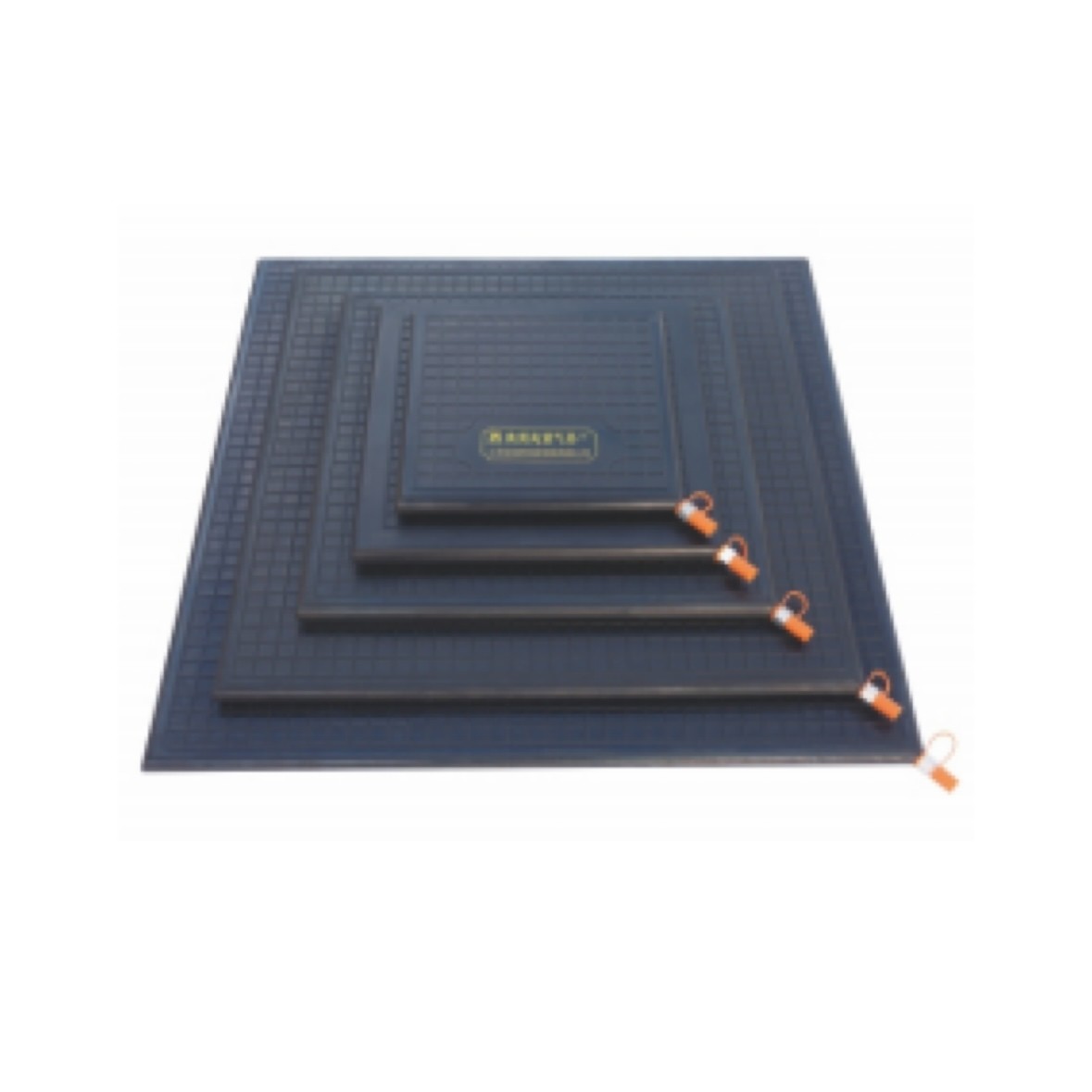

  • The anti - slip mesh pattern design allows two air cushions to be stacked for use.
  • The shut - off valve can seal the air pressure without pressure drop.
  • Fast lifting speed.
  • The air cushions can be used alone or in combination.



III. Main Technical Indicators





Working pressure: 0.8MPa
Supporting height: 75 - 550mm
Structural height: ≤2.6cm
Maximum lifting force: ≥10kN - 666kN
Ambient temperature: - 20°C - +55°C
Weight: 0.66kg - 28.4kg
Specification: 15015025mm - 96096025mm
Lifting capacity: 1T/3T/6T/8T/10T/12T/15T/18T/20T/24T/31T/40T/48T/54T/68T
It is widely used in fire emergency rescue, for supporting and lifting objects to rescue trapped people, and is a special lifting equipment.
