CWH800A Intrinsic Safety Infrared Thermometer 9V Rated Voltage 190mm*130mm*68mm
Contact Person : Yang
Phone Number : +8618010030825
WhatsApp : +8613436381865
| Minimum Order Quantity : | 1set | Price : | USD8500 |
|---|---|---|---|
| Packaging Details : | Aluminium case | Delivery Time : | 60days |
| Payment Terms : | T/T | Supply Ability : | 10sets/month |
| Place of Origin: | China | Brand Name: | Topsky |
|---|---|---|---|
| Model Number: | TP3 |
|
Detail Information |
|||
| Base Outer Shape: | 152.5x152.5 | Total Weight: | 95kg |
|---|---|---|---|
| Static Load: | 4.5t | Launch Initial Velocity: | 38m/s |
| Airborne Flight Time: | 5s | Projection Deviation Angle: | 5° |
| Highlight: | Static Supporting Sleeve,High Strength Supporting Sleeve,Heavy Duty Supporting Sleeve |
||
Product Description

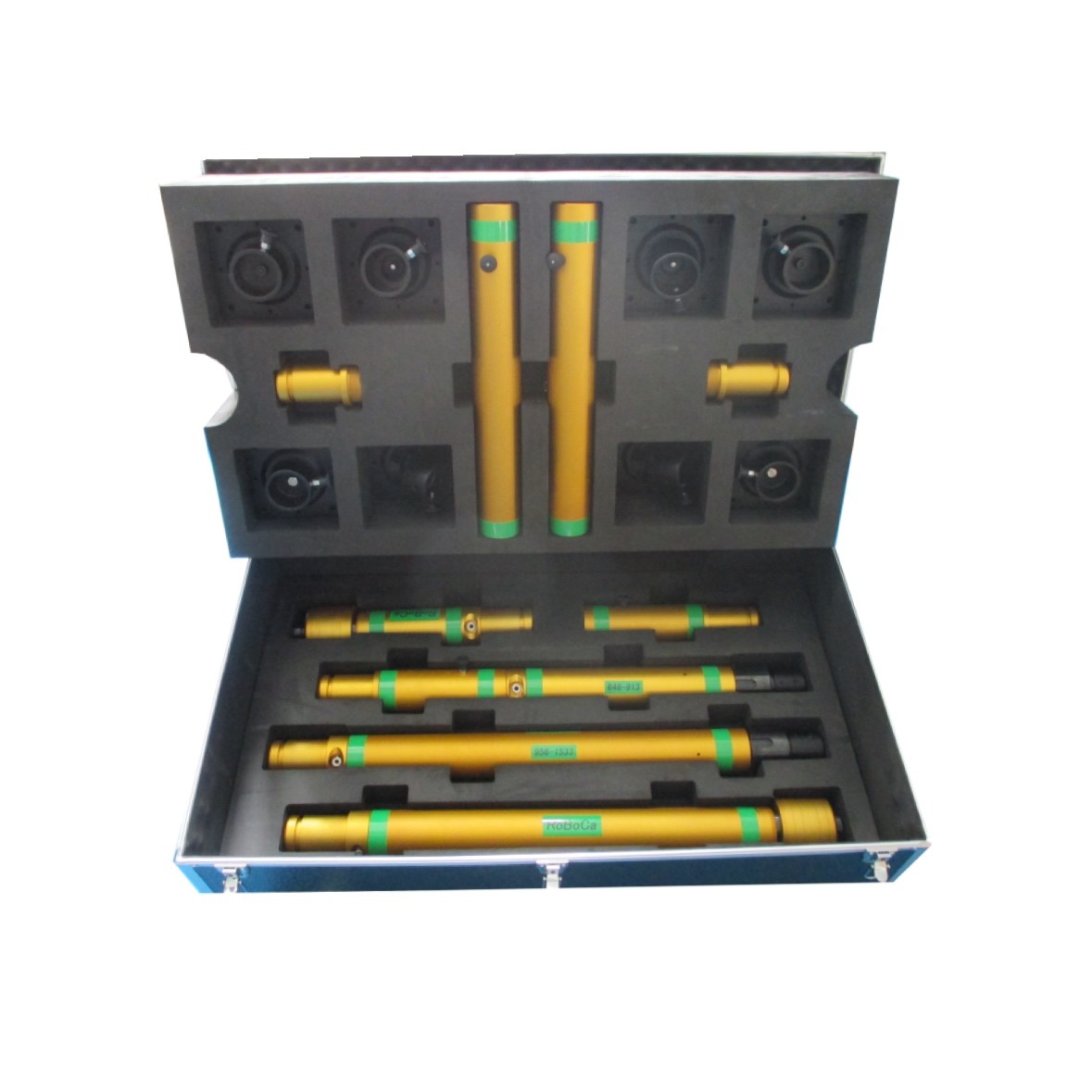

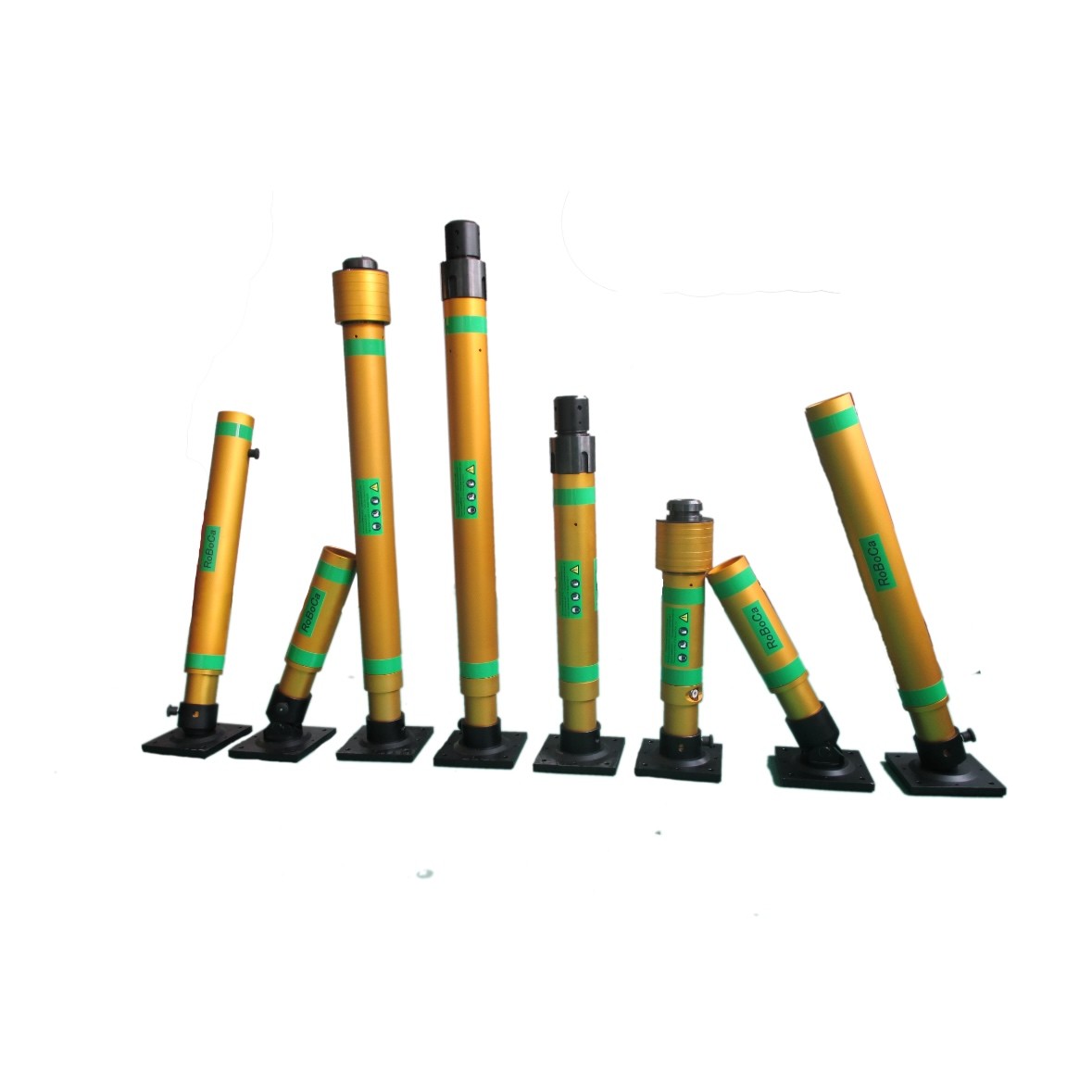

The TP3 Pneumatic Support Set is produced by RoBoCa Company in the United States. It is mainly used by special rescue departments and is suitable for various rescue scenarios such as ruins rescue, tunnel rescue, and traffic accident rescue. The pneumatic support set can be operated manually or pneumatically. It is simple to assemble and disassemble. The support system, which is composed of support rods of different lengths and functions, extension cylinders, and bases, can be used to fix dangerous situations such as ceilings, sloping floors, walls, the top and side walls of tunnels, and accident vehicles, etc., to prevent collapse and avoid secondary accidents during fire rescue operations.
The TP3 Heavy-Duty Pneumatic Support Set can be operated manually or pneumatically. It is simple to assemble and disassemble and has a certain lifting capacity. Its core function lies in high-strength static support. With a simple structure, it can play a good supporting role in uneven conditions and in adverse situations affected by sand and soil. This product can press against objects through high-pressure gas or manual operation. An excellent mechanical safety lock ensures that the piston will not slip off, and it relies on its own mechanical self-locking function to fix and support the objects. Different support bases can be selected according to the usage environment, and support rods and extension cylinders of different lengths can be chosen to meet different support heights.
|
Static load: 4.5t (per single rod)
Gas pressure: ≤ 1.0MPa Thrust: ≤ 3100N Extension cylinders: 301, 651 Outer diameter of the cylinder: Φ76 Outer shape of the base: 152.5x152.5 Diameter of the air pipe: Φ8 Total weight: 95kg Effective support height (excluding the height of the corner seat): 640-910, 950-1530, 460-610, 900-1480 |
Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.
Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.
Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals,. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.
So far, many products have been exported to more than 10 countries.
