I. Product Overview

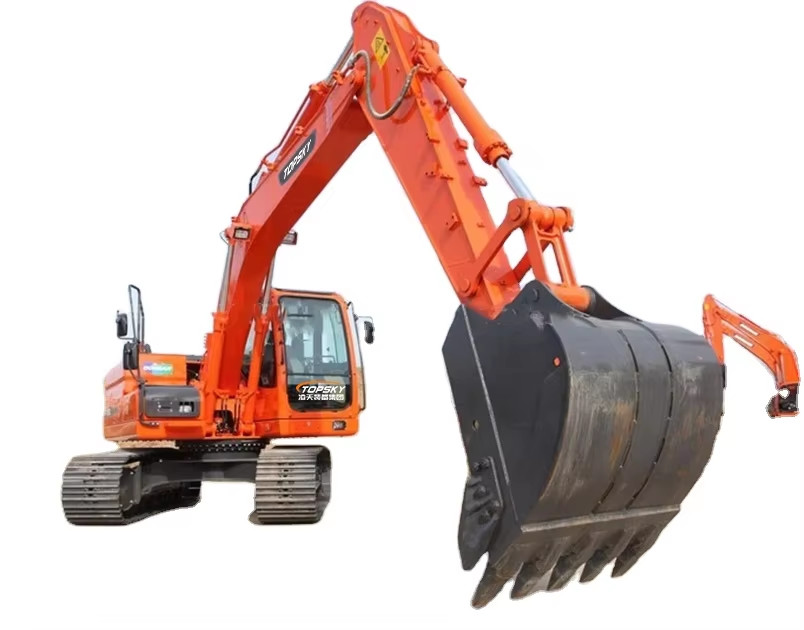

The multi-functional emergency rescue excavator is suitable for emergency rescue operations during natural disasters that require high-intensity and long-duration work. The equipment itself is equipped with a quick-change coupler, an ultra-long sight distance wireless remote control system, and a reinforced bucket, and it has extremely strong adaptability to high altitudes and low temperatures. On the basis of retaining the various advantages of traditional excavators, a remote control operation mode has been newly added, effectively ensuring the safety of rescue workers' lives. It can play a role in emergency rescue road clearance, river channel dredging, blockage and breach repair of barrier lakes, and post-disaster reconstruction.
II. Scope of Application
- Used for handling dangerous situations such as dike cracks, leaks, landslides, breaches, or river blockages
- Most suitable for construction operations at altitudes above 4000 meters
- Suitable for water area management and river channel desilting
- Suitable for emergency rescue operations in wetlands and swamps
- Suitable for embankment reinforcement before, during, and after disasters
III. Product Features
(1) Ultra-sight-distance remote control operationIt enables remote control operation of all actions and is applicable to work in earthquake relief, dangerous and explosive, and toxic environments. The remote control operation distance is ≥ 2000m.
(2) Multiple operation control modesThe excavator has multiple operation modes such as local manual operation, short-range remote control, and long-range remote control. The operation mode in the remote control cabin is the same as that inside the excavator. The operation cabin is a closed cockpit, and the display screen has functions such as video display, real-time 3D attitude display of the excavator, and display of work information and alarm information.
(3) All-weather remote wake-up functionThe all-weather remote wake-up function supports functions such as one-key power on/off, starting, and shutting down of the excavator through remote control throughout the day.
(4) Strong environmental adaptabilityThis equipment has extremely strong adaptability to high altitudes and low temperatures and can play a huge role in emergency rescue work such as mountain rescue and landslides.
(5) Provide multiple open and mobile simulated remote control consolesThe operation cabin is a closed cockpit, and the display screen has functions such as video display, real-time 3D attitude display of the excavator, and display of work information and alarm information.
(6) High-integration detectionIt can measure 4 kinds of gases (specifically: CO2, CH4, CO, H2S)
(7) Cloud platformThe equipment cloud management platform can remotely monitor the operation information and power level of the equipment, as well as the parameters of the on-site toxic and harmful environment, and conduct comprehensive management and application to ensure the timeliness of the equipment.
(8) Multiple hydraulic output power interfacesAn ultra-high pressure output interface is reserved, and the output hydraulic parameters are as follows: two ultra-high pressure outputs, with a pressure of 72MPa; an ultra-high pressure flow rate of 0.7L/min; a low pressure flow rate of 4L/min; the two ultra-high pressure outputs are used independently of each other without affecting each other.
IV. Main Technical Indicators
4.1 Robot Main Unit
Name: Multi-functional Emergency Rescue ExcavatorModel: RXR-JM200D-DGNWThe remote control distance of the multi-functional emergency rescue excavator is ≥ 2km, the bucket capacity is ≥ 1.5m³, and the engine power is ≥ 150kW.
- Basic functions: It has functions such as excavation, gas detection, fire extinguishing, and hydraulic expansion.
- Comply with the fire protection industry standard: "GA 892.1-2010 Fire Robot - Part 1: General Technical Conditions"
- Chassis structure: Adopt an ATV hydraulic crawler chassis.
- Power: High-pressure common rail diesel engine (150kW) + hydraulic pump group system
- Engine power: 150kW/2000rpm
- Maximum applicable altitude: 4000m
- Walking speed (low/high): 3.3/5.2km/h, with stepless speed control.
- Dimensions: ≤ 9570×2990 ×3150 mm
- Total weight of the whole machine: Approximately 21.8-22.3t
- Traction force: ≥ 200kN
- Bucket digging force: ≥ 155kN
- Climbing ability: 35°
- Remote control distance: 2000m
- Maximum working height: 9750mm
- Maximum digging depth: 6750mm
- Maximum unloading height: 6980mm
- Continuous working time: 12h
4.2 Multi-functional System
1. Bucket:Bucket capacity (m³): ≥ 1.5Maximum digging force: ≥ 155kN
2. Multiple hydraulic output power interfaces:Hydraulic flow rate of the power interface: Ultra-high pressure flow rate is 0.7L/min; low pressure flow rate is 4L/min.Maximum working pressure: Pressure is 72MPaFunction: An ultra-high pressure output interface is reserved, with two ultra-high pressure outputs. The two ultra-high pressure outputs are used independently of each other without affecting each other. It can be externally connected to hydraulic disc saws, hydraulic spreaders, hydraulic generators, etc.
4.3 Robot Fire Extinguishing System
- Fire monitor: Domestic electronically controlled fire monitor
- Types of fire extinguishing agents: Water or foam
- Materials: Monitor body - stainless steel, monitor head - hard anodized aluminum alloy
- Working pressure (Mpa): 1.0~1.2 (Mpa)
- Spraying methods: Direct current, atomization, low expansion foam
- Water/foam flow rate: 80L/s
- Range (m): 85m (water)
- Rotation angle: Horizontally rotates with the vehicle's turntable, and vertically rotates with the robotic arm.
- Maximum spray angle: 120°
- Foam monitor pipe: The foam pipe can be replaced, and the replacement method is quick connection. The fire monitor can spray water, foam, and mixed liquid, making it a multi-purpose monitor.
4.4 Robot Reconnaissance System
- By configuring a gas meter and an environmental monitoring module, it can remotely reconnoiter the toxic and harmful gases at the operation site.Gas and environmental perception detection module: SO2, CO, CH4, O2, H2S;
- Audio and video: Equipped with 3 high-definition 4G network cameras, enabling remote monitoring of the on-site environment.
- Leakage detection function: Equipped with a handheld leakage detector.
4.5 Configuration Parameters of the Short-range Handheld Remote Control Terminal
- Working time: 8h
- Basic functions: A three-proof remote control, equipped with an ergonomic shoulder strap; controls the movement of the robot such as forward, backward, and turning; controls the lifting and slewing of the robotic arm; controls the opening and closing and slewing of the tool set; controls the fire monitor to operate in direct current and atomization modes. The data transmission method is wireless transmission using encrypted signals.
- The remote control video delay is ≤ 300ms, the remote control delay is ≤ 100ms, the maximum remote control distance is ≥ 2km, and the built-in battery has a battery life of ≥ 4h. The operation cabin is a closed cockpit, and the display screen has functions such as video display, real-time 3D attitude display of the excavator, and display of work information and alarm information.
- Fire monitor control function: Yes
- Functions such as excavation, gas detection, fire extinguishing, and hydraulic expansion: Yes
- Control functions for lighting lamps and warning lamps: Yes, with a self-locking switch.
- Auxiliary tool: Shoulder strap of the remote control terminal.
