High Efficiencyhydraulic Spreader Tool Hydraulic Cutter Spreader 680mm Opening Distance
Contact Person : Yang
Phone Number : +8618010030825
WhatsApp : +8613436381865
| Minimum Order Quantity : | 1 Set | Packaging Details : | Export standard |
|---|---|---|---|
| Payment Terms : | L/C, T/T | Supply Ability : | 500 Sets/Month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | GYJQ-25/125 |
|
Detail Information |
|||
| Name: | Fire Fighting Equipment/ Hydraulic Equipment Hydraulic Cutter | Maximum Opening Distance Of Scissors End: | ≥220 Mm |
|---|---|---|---|
| Rated Working Pressure: | 63Mpa | Maximum Shear Capacity(Q235 Material): | ф28 Mm(steel Plate) |
| No-load Opening Time: | ≤25s | No-load Closing Time: | ≤30s |
| Quality(working Condition): | ≤13kg | ||
| Highlight: | fire department equipment,fire rescue equipment |
||
Product Description

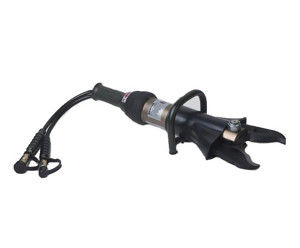

Fire Fighting Equipment/ hydraulic equipment Hydraulic Cutter
Model: GYJQ-25/125
Brand: TOPSKY
Application:
GYJQ-25/125 is widely used in the rescue of highway and railway traffic accident, earthquake disasters, building collapsed, air disaster, marine perils and so on.
Cutting Range: vehicle components, metal structure, pipeline, profiled bar, steel plates and so on.
Characteristic:
Blade is made of high quality heat treatment tool steel. Surface treated with anodizing. So it has good wearability. Moving parts are equipped with protective casing.
The designed of the knife conforms to Ergonomic which will naturally push the cut material into the center of the biggest shear strength blade.
Technical Specification:
| maximum opening distance of scissors end |
≥220 mm
|
| rated working pressure | 63Mpa |
| maximum shear capacity(Q235 material) | ф28 mm(steel plate) |
| No-load opening time | ≤25s |
| No-load closing time | ≤30s |
| Quality(working condition) | ≤13kg |
| Dimension | 700mm×210mm×165mm |
