Small Volume Unexploded Laser Destroyer Large Output Power

Minimum Order Quantity : 1set Price : USD74000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: ChinaIP68 Brand Name: Topsky
Model Number: F300S-L (600W)

Detail Information

Laser Measured Power: 600w Laser Wavelength: 1080±5nm
Visual Remote Control Distance: 500m Total Weight Of Destruction Equipment: 69KG
Effective Destruction Distance: 10-100 Meters Unfolding/folding Timerange: 2min
Highlight:

Unexploded Laser Destroyer

,

Large Output Power Laser Destroyer

,

Small Volume Laser Destroyer

Product Description

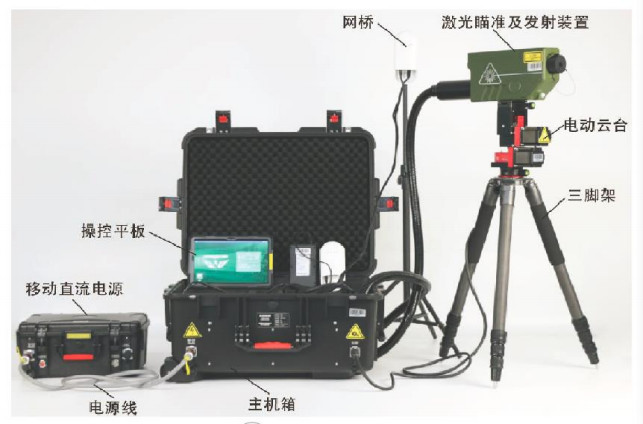

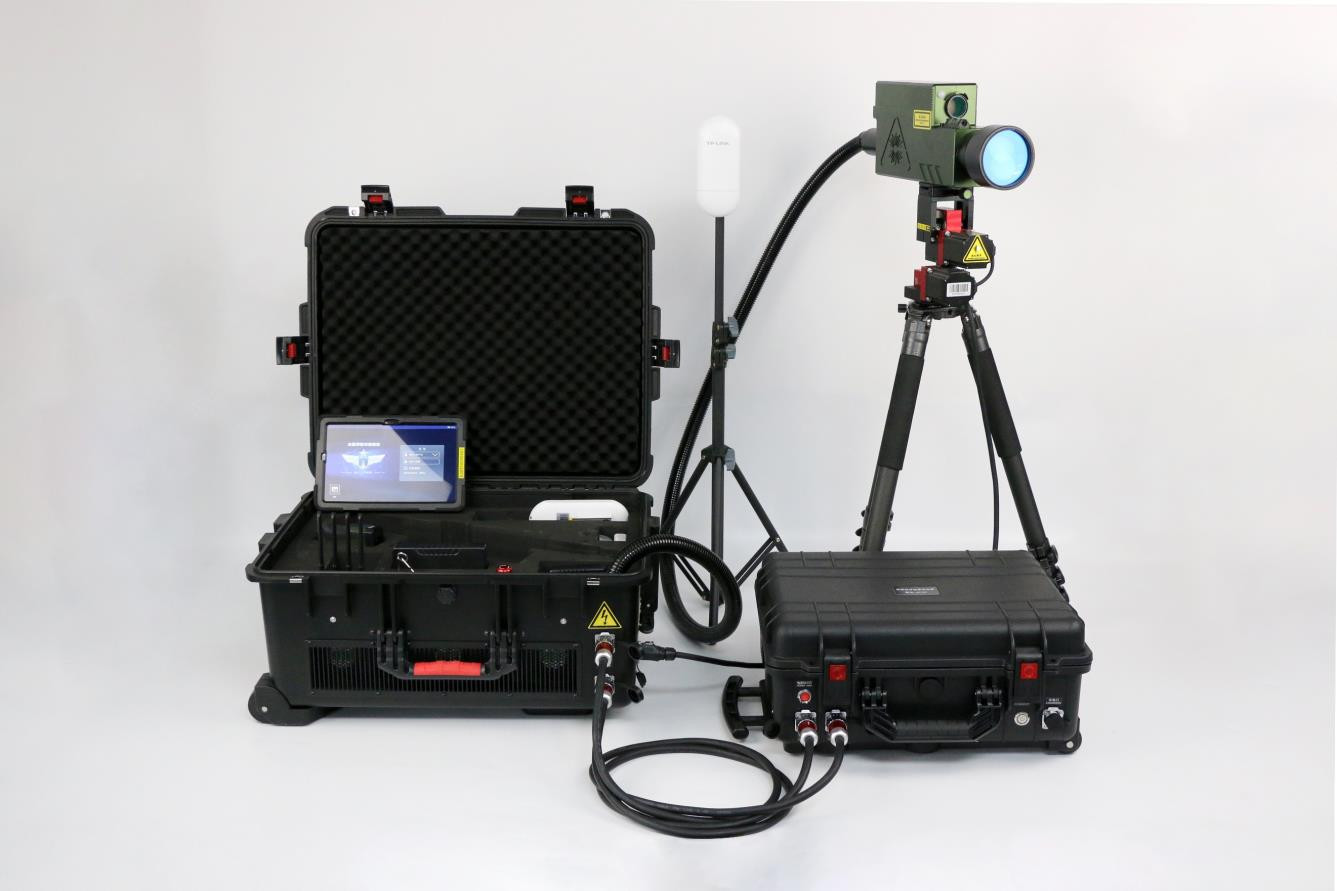

F300S-L (600W) Unexploded Laser Destroyer



I. Product Overview

The device emits high-energy laser from a long distance and focuses it on the surface of the unexploded ordnance. It ablates the outer shell of the unexploded ordnance, causing the area of the light spot on the shell to become extremely hot and soften. The internal explosive charges heat up and increase in pressure, leading to combustion or a low-equivalent explosion, achieving the effect of safely and efficiently destroying the unexploded ordnance.



II. Product Features

  1. Long remote control distance, enabling long-distance destruction. The operation distance can reach 10 - 100 meters.
  2. It can be used independently or mounted on a vehicle, with diverse laying methods.
  3. Short charging time and a large number of uses after charging.
  4. The laser has a large output power, high beam quality, and a small volume.
  5. Stable performance, low failure rate, and good safety.



III. Main Technical Indicators



  • Measured laser power: ≥600W
  • Effective destruction range: 10 - 100 meters
  • Laser wavelength: 1080±5nm
  • Line-of-sight remote control distance: ≥500m
  • Beam quality M2≤1.2. The laser lens is a collimating lens, and the lens diameter ≥50mm.
  • Continuous working time at full power after one charge of the destruction device (at room temperature): ≥50min
  • Total weight of the destruction device: ≤60kg
  • Dimensions of the main chassis: 585×450×310mm, and dimensions of the battery box: 340×237×166mm
  • Number of operators: ≤2 people
  • Deployment/retraction time: ≤2min
  • Operating temperature: -20℃ to +55℃
  • Storage temperature: -40℃ to +60℃
  • The electronically controlled pan-tilt works with an aluminum precision worm gear reducer and brushless dual motors, featuring accurate aiming, smooth rotation, sturdiness and durability, and shock and drop resistance.
  • Main objects of action: Destroying thin-walled unexploded ordnance generated during training: Hand grenades (DSS161, 82-2), 35mm grenades, small aerial bombs: (Aerial 23-2A incendiary and high-explosive bombs) and various small-caliber unexploded ordnance.









 .png
