Multifunction Operation Hydraulic Drilling Machine Manual Electric Starting

Minimum Order Quantity : 1set Price : USD9200
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: LT-13/30-Z100

Detail Information

Engine Power: 10KW Output Flow: 20-30 L/min
Weight: 74.3Kg Fuel Tank Capacity: 6.5L
Maximum Working Pressur: 158bar Connection Method: Quick Change Connector
Highlight:

Multifunction Hydraulic Drilling Machine

,

Electric Hydraulic Drilling Machine

,

Manual Hydraulic Drilling Machine

Product Description

LT-13/30-Z100 Hydraulic Drilling Machine



I. Scope of Application

Safety fields such as fire protection and emergency response.



II. Main Technical Indicators

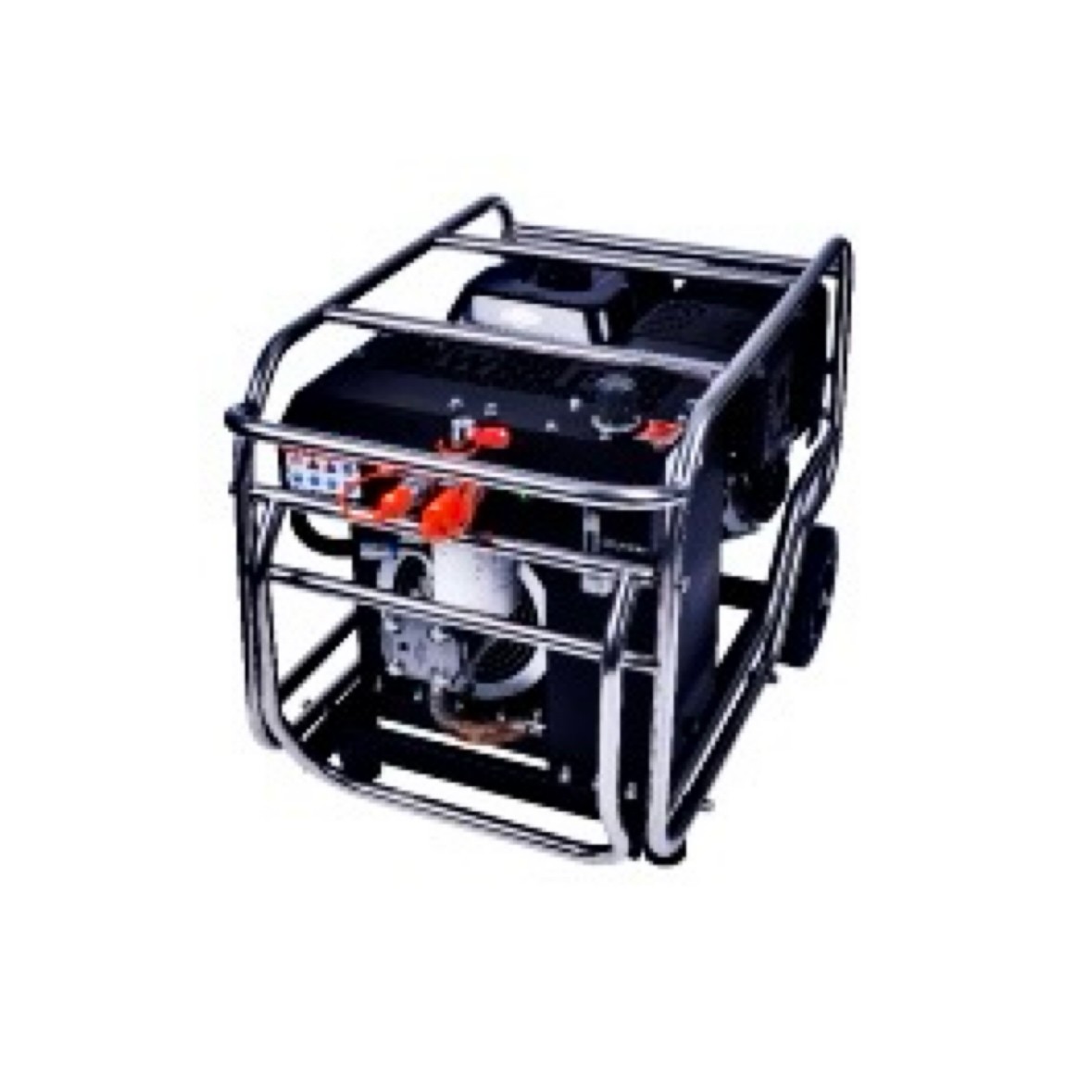

[Hydraulic Power Station]



  1. The hydraulic pump station is mainly composed of a gasoline engine and a hydraulic system.
  2. It has a dual starting mode of manual and electric starting, air cooling, and low oil level protection.
  3. The engine power is 10kw/13.5HP.
  4. The output flow rate is 20 - 30 liters per minute.
  5. The maximum working pressure is 158 bar.
  6. It weighs 74.3 Kg, which makes it easy to move and carry during disaster relief.
  7. The fuel tank capacity is 6.5L.
  8. The connection mode is quick - change joints.
  9. It is equipped with 2 hydraulic oil pipes, each 10M long.

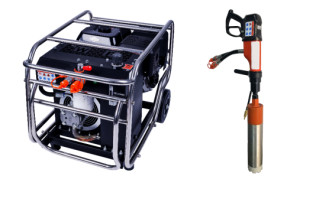

[Hydraulic Core Drill]

  1. Weight (kg): 8.8
  2. Flow range (lpm): 15 - 40
  3. Working pressure (bar): 105 - 140
  4. Maximum rotation speed (rpm): 605
  5. Drilling diameter (mm): ¢25 - ¢200
  6. It is equipped with 2 drill bits each with diameters of 25/50/100/200mm.



III. Product Configuration

One power station
one core drill
one instruction manual
one certificate of conformity


































Company Information



Beijing Topsky Intelligent equipment Group Co.,Ltd.. (stock code: 836307) was founded in 2003, committed to making the world safer with innovative equipment, and determined to become a continuous leader in global high-end safety equipment.

Our company has independent R&D and technology promotion capabilities, and has one R&D and production building. Headquartered in Jinqiao Industrial Base, Zhongguancun High-tech Park, it is a national high-tech enterprise with a registered capital of RMB 46,514,300. Our company has independent R&D and manufacturing capabilities. Located in Beijing Economic Development Zone, the 3-story R&D building covers an area of 1,500 square meters, the production building is 1,800 square meters, and the third-phase production building is nearly 3,000 square meters under construction.

Our innovative technologies, services and systems are dedicated to serving the firefighting, law enforcement agencies, safety supervision bureaus, coal mines, petrochemicals,. It involves the research and development of high-end equipment such as drones, robots, unmanned ships, special equipment, emergency rescue equipment, law enforcement equipment, and coal mine equipment.

So far, many products have been exported to more than 10 countries.
