High Efficiencyhydraulic Spreader Tool Hydraulic Cutter Spreader 680mm Opening Distance
Contact Person : Yang
Phone Number : +8618010030825
WhatsApp : +8613436381865
| Minimum Order Quantity : | 1 set | Price : | USD5000-USD9000 |
|---|---|---|---|
| Packaging Details : | Export package | Delivery Time : | 15 working days |
| Payment Terms : | T/T |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | LT-1.5T/3.0T |
|
Detail Information |
|||

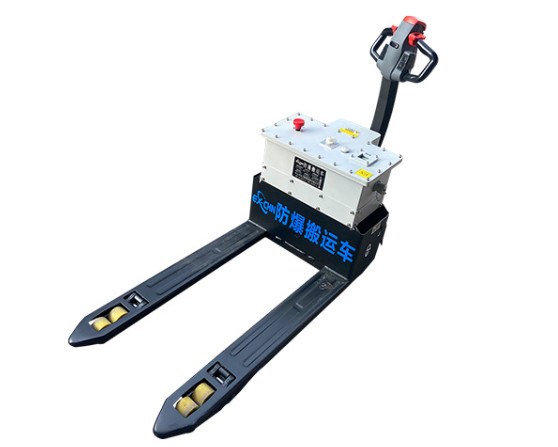

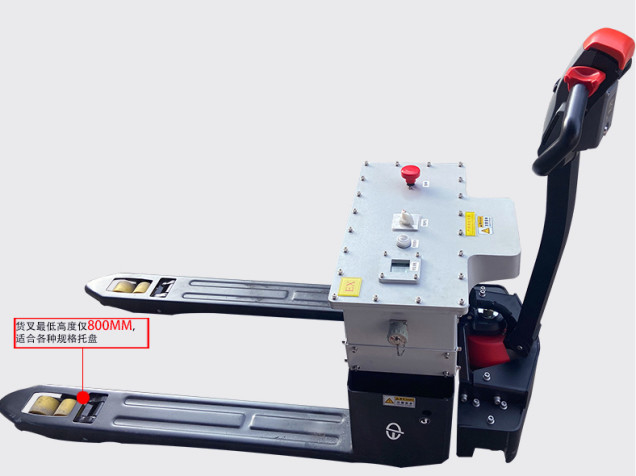

| Name: | Coal Mine Electric Trolley LT-1.5T/3.0T | Rated Load: | 1500kg |
|---|---|---|---|
| Load Center Distance: | 600mm | Self -weight (including Battery): | 230kg |
| Standard For Maximum Uplink Height: | 115mm | Vehicle Length: | 1638mm |
| Highlight: | 1500kg Coal Mine Electric Trolley,3T Coal Mine Electric Trolley |
||
Product Description
1.Product overview
Explosion-proof trolley refers to a class of trolley with explosion-proof performance. The main battery explosion-proof forklift and battery explosion-proof trolley. The factors causing the explosion such as spark, static electricity and temperature are dealt with comprehensively. The motor and electrical appliances are designed for flameproof type, and the power supply device is designed for explosion-proof special type.
2.Scope of application
It is suitable for dangerous places with explosive gas mixtures in petroleum, chemical, textile, pharmaceutical, food, national defense and other industrial sectors for loading and unloading, handling, stacking and other operations.
3.Product Features
3.1 Installation of explosion -proof weighing system
Our type can add explosion -proof weighing systems for you. It uses four high -precision explosion -proof sensors, one security explosion -proof wiring box, a 315 explosion -proof weighing meter, and can be added with Bluetooth and WIFI weighing signal transmission.
3.2 Customized fork ruler
When we encounter some special industries and purposes, the conventional and selected fork ruler size cannot meet our requirements, and we can provide you with non -standard size customization.
3.3 Fork ruler cover stainless steel
The raw materials of some industries are corrosive. The conventional carbon steel fork arm loss is large and the durability is low. We can cover a layer of stainless steel on the surface where the materials may be exposed to increase the durability of the product.
4.Main Specifications
| Model | Unit | 1.5T | 2T | 3T |
| Dynamic | electric | electric | electric | |
| Type | Walking | Walking | Walking | |
| Rated load | Q(kg) | 1500 | 2000 | 3000 |
| Load center distance | c(mm) | 600 | 600 | 600 |
| Bearer length | x(mm) | 883/946 | 874/962 | 877 |
| Wheelbase | y(mm) | 1202/1261 | 1248/1336 | 1205 |
| Self -weight (including battery)) | Kg | 230 | 290 | 460 |
| Tire type, drive wheel/bearing wheel (rotor wheel) | Polyurethane | Polyurethane | Polyurethane | |
| Standard for maximum uplink height | (mm) | 115 | 115 | 115 |
| Operation location Handle rod minimum/maximum height | (mm) | 750/1170 | 750/1170 | 1200 |
| The height after the fork drops | (mm) | 80 | 80 | 85 |
| Vehicle length | (mm) | 1638 | 1685 | 1638 |
| The length of the vertical surface of the fork | (mm) | 488 | 535 | 590 |
| Overall width | (mm) | 560(685) | 560 (685) | 694 |
| Fork size | (mm) | 50/150/1150 | 50/150/1150 | 54/150/1220 |
| Fork outside width | (mm) | 560(685) | 560(685) | 560 (685) |
| The width of the right -angle stacking channel (the tray is 1000 length × 1200 width) | (mm) | 2304 | 2304 | 1739 |
| The width of the right -angle stacking channel (the tray is 800 width × 1200 long) | (mm) | 2371 | 2371 | 1939 |
| Walking speed, full load/empty load | km/h | 4.5/5 | 4.5/5 | 4.5/5 |
| Raise speed, full load/empty load | m/s | 0.027/0.038 | 0.018/0.037 | 0.024/0.038 |
| Down speed, full load/empty load | m/s | 0.059/0.039 | 0.032/0.038 | 0.059/0.039 |
| Maximum climbing angle | % | 45062 | 45154 | 45087 |
| Driving brake type | Electromagnetic | Electromagnetic | Electromagnetic | |
| Drive motor rated power s260 minutes | KW | 0.75 | 0.75 | 0.75 |
| Rate -lift motor rated power S315% | KW | 0.84 | 0.84 | 0.84 |
| Battery voltage/nominal tolerance violence | V/Ah | 2x12/65 | 48V/30 | 2x12/100 |
| Drive control type | DC | DC | DC | |
| Steering type | mechanical | mechanical | mechanical | |
| Drive unit type | DC | DC | DC | |
| Noise level S | dB(A) | 74 | 74 | 70 |
