High Efficiencyhydraulic Spreader Tool Hydraulic Cutter Spreader 680mm Opening Distance
Contact Person : Yang
Phone Number : +8618010030825
WhatsApp : +8613436381865
| Minimum Order Quantity : | 1 set | Price : | USD6000-10000 |
|---|---|---|---|
| Packaging Details : | Export package | Delivery Time : | 15 working days |
| Payment Terms : | T/T | Supply Ability : | 50 Sets/Month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | LT-CL30 |
|
Detail Information |
|||
| Current Meter Size:: | 200*175*155mm | Current Meter Weight:: | 570g |
|---|---|---|---|
| Current Meter Power Consumption:: | 5W | Camera Pixels:: | 3 Million |
| Camera Resolution:: | 1920*1080 | Output Power:: | 20dBm |
| Highlight: | 5W fire fighting drone,Flow Measuring fire fighting drone |
||
Product Description
| 1.Overview |
|

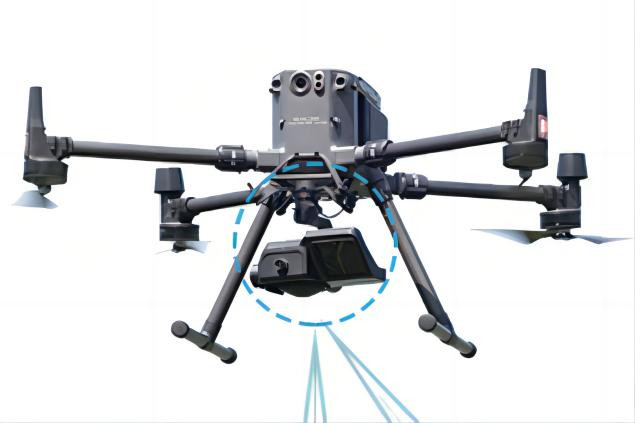

It is used for rapid detection of rainstorm flood flow speed, especially water flow speed of levee break. With the monitoring system of UAV water velocity and flow, the flow velocity environment measurement is ≥20m/s. The UAV water flow meter integrates millimeter wave radar, which can carry out emergency water flow monitoring during flood season and heavy rain. Not affected by the monitoring environment, daily or emergency can be used anywhere. 4x optical zoom lens view the disaster area, live transmission back to the command center. Adapted to DJI M300RTK/M350RTK, resistant to level 7 wind, can fly in moderate rain environment. Remote monitoring, avoid risk areas, ensure the safety of operators. |
| 2.Application |
| Emergency fire fighting, flood fighting, etc |
| 3.Feature |
|
Radar current meter adopts the principle of Doppler effect to measure the surface velocity of flow body. The operation is convenient, the UAV airborne radar flow measurement, the field only needs one staff to control the UAV and operate the APP flow measurement software to complete the flow measurement work. The DJI Plilot mobile APP can be used directly to monitor water flow speed in real time. Adapted to DJI M300RTK/M350RTK, resistant to level 7 wind, can fly in moderate rain environment. Remote monitoring, avoid risk areas, ensure the safety of operators. 4x optical zoom lens view the disaster area, live transmission back to the command center.
|
| 4.Main Specification |
|

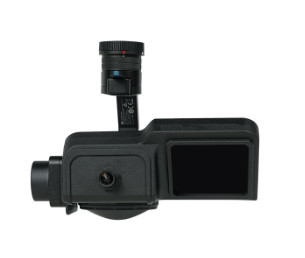

Machine parameter Current meter size: 200*175*155mm Current meter weight: 570g Current meter electrical interface: DJI SKYPORT adapter ring Current meter power consumption: 5W Video distance: 15km(displayed on remote control via drone link) Data distance: unlimited distance (4G module sends data to browser), 15km (display in remote control via drone link) Uav models: DJI M300RTK, M350RTK (optional) Camera module parameters Camera pixels: 3 million Camera resolution: 1920*1080 Camera frame rate: 30fps Camera focal length: 4mm, 6mm, 8mm, 12mm, 16mm optional Parameter of flow measurement module Sensor type: millimeter wave radar Transmission frequency: 24GHz Output power: 20dBm Beam Angle: horizontal 6° Vertical 12° Range: 0.1m/ S-20m /s Accuracy: soil 0.01m/s Resolution: 0.01m/s Data frequency: 1Hz Parameters of the water level measuring module Sensor type: millimeter wave radar Transmission frequency: 24GHz Output power: 13dBm Beam Angle: 8° Range: 0.2m-40m Accuracy: Soil 1cm Resolution: 1mm Data frequency: 1Hz |
