High Efficiencyhydraulic Spreader Tool Hydraulic Cutter Spreader 680mm Opening Distance
Contact Person : Yang
Phone Number : +8618010030825
WhatsApp : +8613436381865
| Minimum Order Quantity : | 1 Set | Packaging Details : | Export standard |
|---|---|---|---|
| Payment Terms : | L/C, T/T | Supply Ability : | 500 Sets/Month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | GYJK-36.8～42.7/20-3 |
|
Detail Information |
|||
| Name: | Fire Fighting Equipment/ Good Quality Hydraulic Combi-Tool Cutter-Spreader | Maximum Opening Distance Of Scissors End: | ≥350 Mm |
|---|---|---|---|
| Rated Working Pressure: | 63Mpa | Maximum Shear Capability(Q235 Material): | Ф15 Mm(steel Plate) |
| Rated Expansionary Force: | 32KN | Quality: | ≤14 Kg |
| Dimension: | 760mm×210mm×170mm | ||
| Highlight: | Combi hydraulic spreader cutter,Rescue hydraulic spreader cutter,32KN hydraulic spreader cutter |
||
Product Description

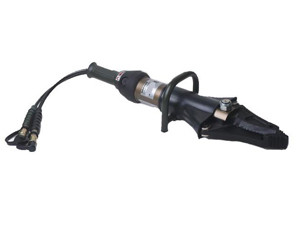

Fire Fighting Equipment/ Good quality Hydraulic Combi-Tool Cutter-Spreader
Model:GYJK-36.8～42.7/20-3
Application:
GYJK-36.8～42.7/20-3 Hydraulic Combi-Tool Cutter-Spreader is widely used in the area of traffic accident rescue, earthquake disaster relief, accident rescue and so on.
It is suitable for mobile rescue operation.
Cut off metal structure, vehicle components, pipe and metal sheet.
Characteristic:
GYJK-36.8～42.7/20-3 Hydraulic Combi-Tool Cutter-Spreader incorporates shear, expansion and traction. This kind of tool is equivalent to a clipper and an expander.
Cutter is made with resharpening high strength alloy tools.
It takes a little time while opening and closing.
Manual Valve operation makes the opening and closing of blade stay in any position.
It has self-locking function.
Technical Specification:
| maximum opening distance of scissors end |
≥350 mm
|
| rated working pressure | 63Mpa |
| maximum shear capability(Q235 material) | Ф15 mm(steel plate) |
| Rated expansionary force | 32KN |
| Quality | ≤14 kg |
| Dimension | 760mm×210mm×170mm |
